Outlets, computers, smartphones, and now EVs. Wherever a new technology grows, multiple kinds of plug inevitably follow.
We’re here to clear up the confusion so you always know how to charge.
Standard AC Charging
Type 1
Alternate names: J1772, SAE J1772
In Australia, this is the plug standard used by Mitsubishi and some pre-2018 EVs. It is the plug standard in North America and Japan.
The Type 1 plug has a five-pin design. Two pins are used as a mode of communication between the EV and charging stations, determining the maximum current available to the vehicle and preventing the car from moving while connected. The three remaining pins are used as AC lines for charging and a line to the ground.

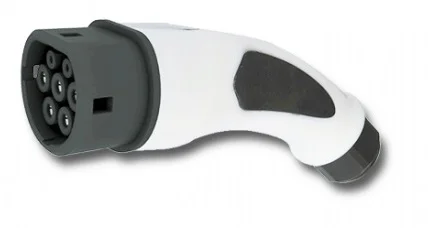

Type 2
Alternate names: IEC 62196, Mennekes
In Australia, this plug standard is currently used by all other EV manufacturers. It is now the standard for Australian EVs.
The Type 2 plug has a seven-pin design. The addition of two extra pins allows these plugs to support three-phase charging. Type 2 is also the plug standard for all of Europe.
EV LANGUAGE
Charger types, AC vs. DC charging and other essential lingo.
Rapid DC Charging

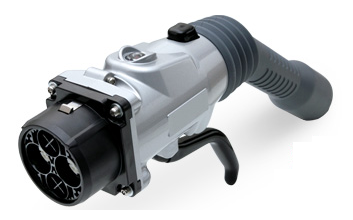

CHAdeMO
CHAdeMO
An abbreviation for “CHArge de MOve”, french for “move using charge”. It is used internationally by the Japanese brands Mitsubishi, Nissan and Toyota.
CCS Type 1 Plug

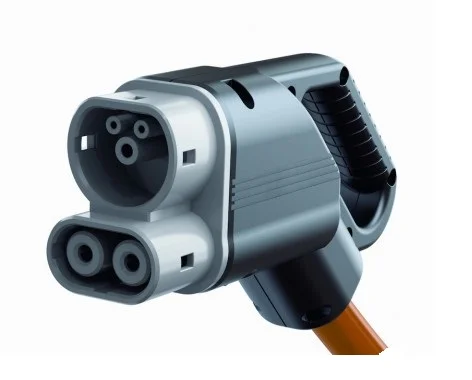

CCS Type 2 Plug
CCS Combo
CCS is short for combined charging system. It allows AC and DC chargers to use the same plug. CCS has two variants using Type 1 and Type 2 AC plugs. These standards are used by Volkswagen, BMW, Ford and Hyundai internationally.

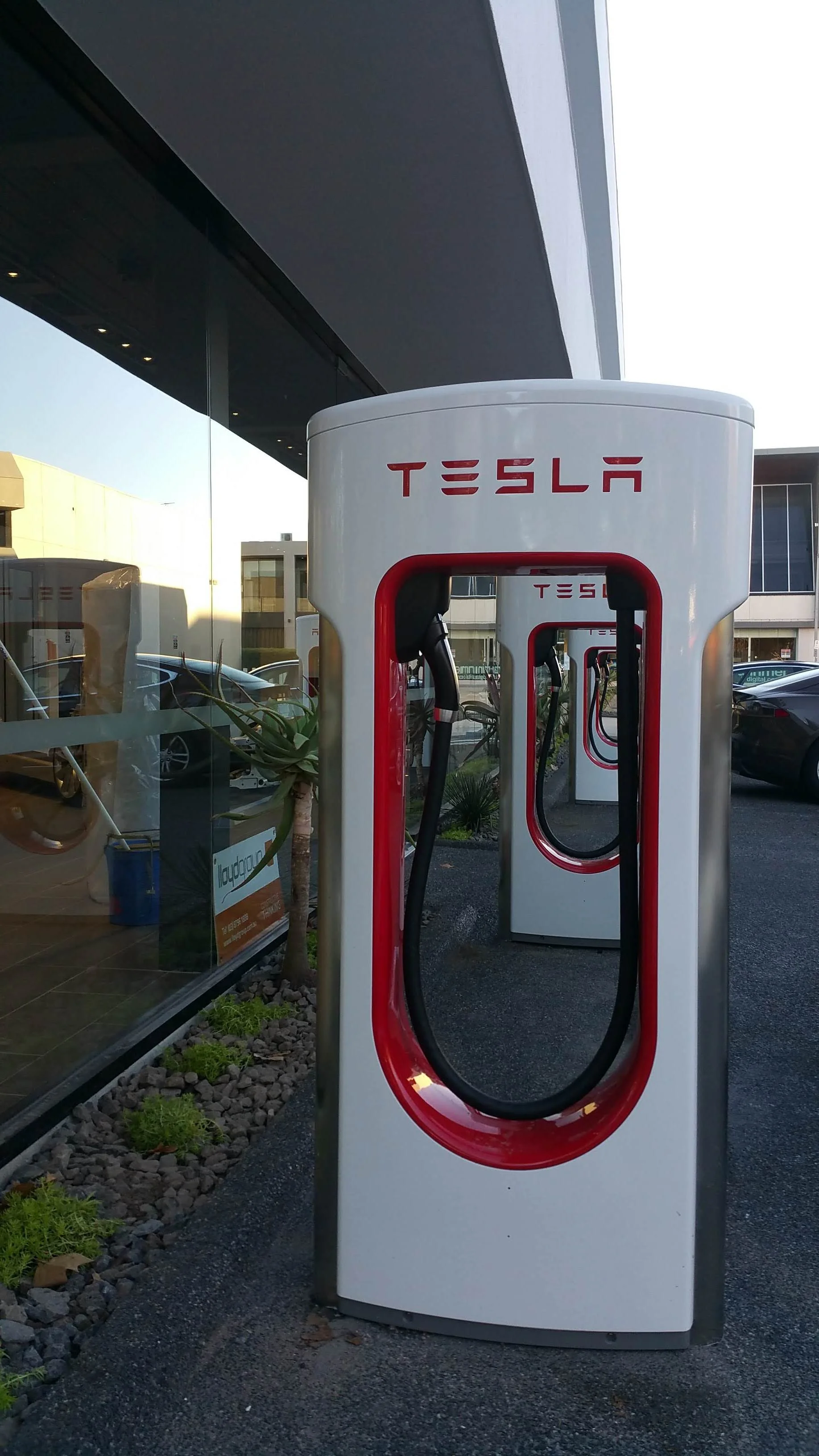

Tesla Supercharger
Tesla Superchargers use the same design as Type 2 AC plugs. However, they’re able to deliver much more power by using two of the pins for DC current.
However, despite the shared plug design, Tesla Superchargers will only charge Tesla vehicles.
WHICH CABLE DO I NEED?
Keep your EV charged with the right cables.

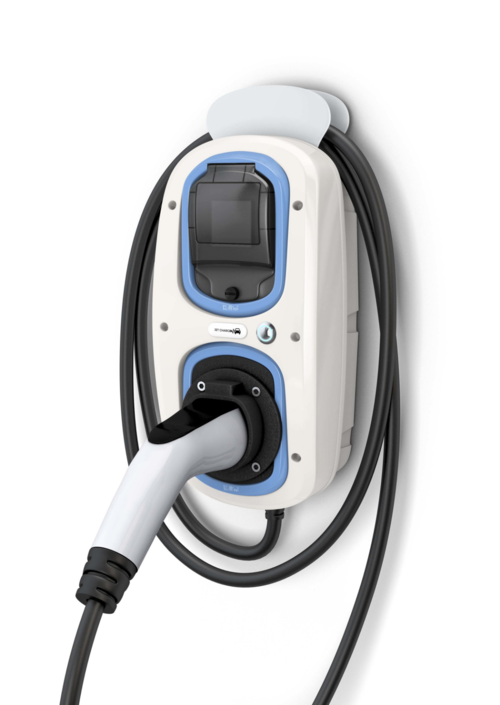

Check out the Wallpod!
The Wallpod can be purchased with any plug standard, and now that you've done your research, you'll know what plug type to order for your car. These charging stations are the perfect solution for charging at home.
Learn more about the Wallpod's capabilities in our hardware section.
